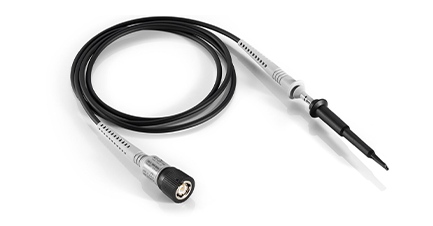

羅德與施瓦茨無源探頭是探頭領域的多面手。這些探頭成本低且用途廣泛，適合在很多應用中使用。
主要特點
可用型號
| 型號 | 帶寬
| 最大電壓 | 衰減因子 | 輸入阻抗 | 注釋 |
| RT-ZP1X | 38 MHz | 55 V (RMS) (CAT II) | 1:1 | 1 MΩ || 39 pF | - |
| RT-ZP03S? | 300 MHz | 400 V (RMS)
55 V (RMS) | 10:1 | 10 MΩ || 12 pF | - |
| RT-ZP05S?? | 500 MHz | 300 V (RMS) | 10:1 | 10 MΩ || 10 pF | - |
| RT-ZP10? | 500 MHz | 400 V (RMS)
300 V (RMS) (CAT II)? | 10:1 | 10 MΩ || 9.5 pF | 2.5 mm 探頭尖端直徑，針對 R&S?RTO2000/R&S?RTE1000 預調 |
| RT-ZI10 | 500 MHz | 600 V (RMS) (CAT IV)
1000 V (RMS) (CAT III)? | 10:1 | 10 MΩ || 12 pF | 適用于 R&S?RTH 手持式示波器的雙探頭或四探頭組合：R&S?RT-ZI10C-2、R&S?RT-ZI10C-4 |
| RT-ZI10C? ? ? ? ? ? | 500 MHz | 300 V (RMS) (CAT III) | 10:1 | 10 MΩ || 11 pF | 適用于 R&S?RTH 手持式示波器 |
| RT-ZI11? ? ?? | 500 MHz | 600 V (RMS) (CAT IV)
1000 V (RMS) CAT III
3540 V (RMS) (CAT 0)? ? ? ? ? ? ? ? ? ? ? | 100:1 | 100 MΩ || 4.6 pF | 適用于 R&S?RTH 手持式示波器 |
| RT-ZPMMCX | 700 MHz | 30 V (RMS) | 25:1 | 14.9 MΩ ± 1 %??||?< 4pF? | for MXO 4 and MXO 5 |
